DIMENSIONS & MOUNTING: 5 types of mounting options are available for the V Style clock spring balance. It can mount in the following ways:

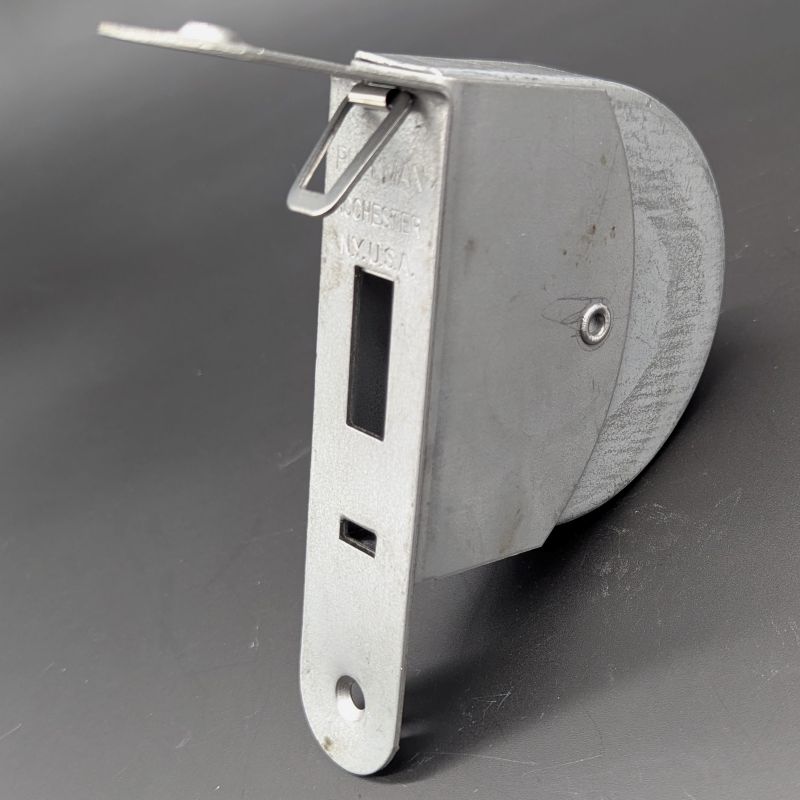

- OVERHEAD style with a bracket that attaches to the top of the sash
- SIDE style where the tape balance mounts in the side of the sash.
- S.D Faceplate is a side mount made to match Caldwell sash tape balances.
- NO FACEPLATE for special applications(see image).
- VX FACEPLATE with ½ mount section(see image).
- TS FACEPLATE with special cut out(see image).
V-SIDE STYLE: A = 6” | B = 1” | C = 3” | E = 3” | Tape Length 40”
VX STYLE: A = 4-7/8” | B = 1” | C = 3” | E = 3” | F = ⅜” | Tape Length 40”
V-TOP STYLE: A = 4.5” | B = 1” | C = 3” | E = 3” | F = 1.5” | Tape Length 40”
WEIGHTS: Type V is a medium size clock tape balance and handles weights from 4 lbs. to 29 lbs. Contact us for Caldwell Mfg Tape Balance Crossover part numbers.
NOTE: 2 balances are required for the noted sash weight. Balance pricing is per individual balance.
Part numbers by sash weight and mount style:
| SIDE MOUNT: | OVERHEAD MOUNT: | VX MOUNT: |
|---|---|---|
| 2-V: 4-5 lbs | 102-V: 4-5 lbs | 102-VX: 4-5 lbs |
| 3-V” 5-7 lbs | 103-V” 5-7 lbs | 103-VX” 5-7 lbs |
| 4-V: 7-9 lbs | 104-V: 7-9 lbs | 104-VX: 7-9 lbs |
| 5-V: 9-11 lbs | 105-V: 9-11 lbs | 105-VX: 9-11 lbs |
| 6-V: 11-13 lbs | 106-V: 11-13 lbs | 106-VX: 11-13 lbs |
| 7-V: 13-15 lbs | 107-V: 13-15 lbs | 107-VX: 13-15 lbs |
| 8-V: 15-17 lbs | 108-V: 15-17 lbs | 108-VX: 15-17 lbs |
| 9-V: 17-19 lbs | 109-V: 17-19 lbs | 109-VX: 17-19 lbs |
| 10-V: 19-21 lbs | 110-V: 19-21 lbs | 110-VX: 19-21 lbs |
| 11-V: 21-23 lbs | 111-V: 21-23 lbs | 111-VX: 21-23 lbs |
| 12-V: 23-25 lbs | 112-V: 23-25 lbs | 112-VX: 23-25 lbs |
| 13-V: 25-27 lbs | 113-V: 25-27 lbs | 113-VX: 25-27 lbs |
| 14-V: 27-29 lbs | 114-V: 27-29 lbs | 114-VX: 27-29 lbs |
INFORMATION Needed for Order (Clockspring Window Balances)
- Weight of each window sash
- Height of each window sash
- 2 balances required per sash (4 balances per window).
- Type of Faceplate. “V”, “VX”, “SD”, “TS”, “No Faceplate”
See V Type Balance Spec Sheet Info Sheet for additional images.
